2025 Ducati Panigale V2

Chassis and Ergonomics

• MONOCOQUE FRAME: Attached directly to the cylinder heads, the monocoque frame houses the steering head bearings, contained in two aluminum bushes. In addition to working as a frame, the monocoque also serves as an air-box. It contains not just the air filter but also the throttle bodies and the fuel circuit, complete with injectors, and is sealed off by the aluminum fuel tank bottom.
• FRONT-END GEOMETRY: The front-end geometry has 24° of rake and 94 mm of trail, while the double-sided swingarm has been replaced with a sophisticated, fully die-cast aluminum single-sided swingarm. The wheelbase is 1436 mm and the weight distribution is 52% at the front and 48% at the rear.
• SUSPENSION: The Panigale V2 features the 43 mm Showa BPF fork at the front, fully adjustable in its spring pre-load, compression and rebound damping. The Showa Big Piston Fork (BPF) considerably improves damping control at low speed, ensuring lower-pressure oil feed and reducing the amount of fluid needed for compression and rebound adjustment.
• WHEELS AND TIRES: The Panigale V2 has a 5-spoke, 3.5 inch wheel at the front and 5.5 inch wheel at the rear, both rolling on Pirelli Diablo Rosso IV Corsa tires, specifically 120/70 ZR17 at the front and 180/60 ZR17 at the rear. Pirelli's first multi-compound bike tyre, the Diablo Rosso IV Corsa combines racetrack performance with road versatility, making it ideal for the Panigale V2

Electronics

• 4.3” TFT DISPLAY: Instrumentation on the Panigale V2 features a 4.3" TFT display. The graphics and interface facilitate menu browsing and setting adjustment while allowing more immediate identification of the selected Riding Mode. The Riding Mode interface clearly and immediately shows any changes being made to the settings. This is done thanks to the explanatory graphics of the system being adjusted and a graduated scale indicating whether the modification is better suited to performance or vehicle safety/stability.
• ELECTRONIC CONTROLS: The comprehensive and modern electronic equipment, based on the 6-axis inertial platform, leaves no doubt that the Panigale V2 possesses the DNA of a high-end sports bike. The new electronics package raises active safety and dynamic control standards thanks to the ABS cornering function and quick shift up/down, in addition to traction control, engine brake control and wheelie control. All controls are integrated into the three Riding Modes (Race, Sport and Street) and can be adjusted via the 4.3" color TFT dashboard. Featuring a user-friendly graphic interface inspired by that of the Panigale V4, menu navigation, settings adjustment and identification of the selected Riding Mode couldn't be easier.

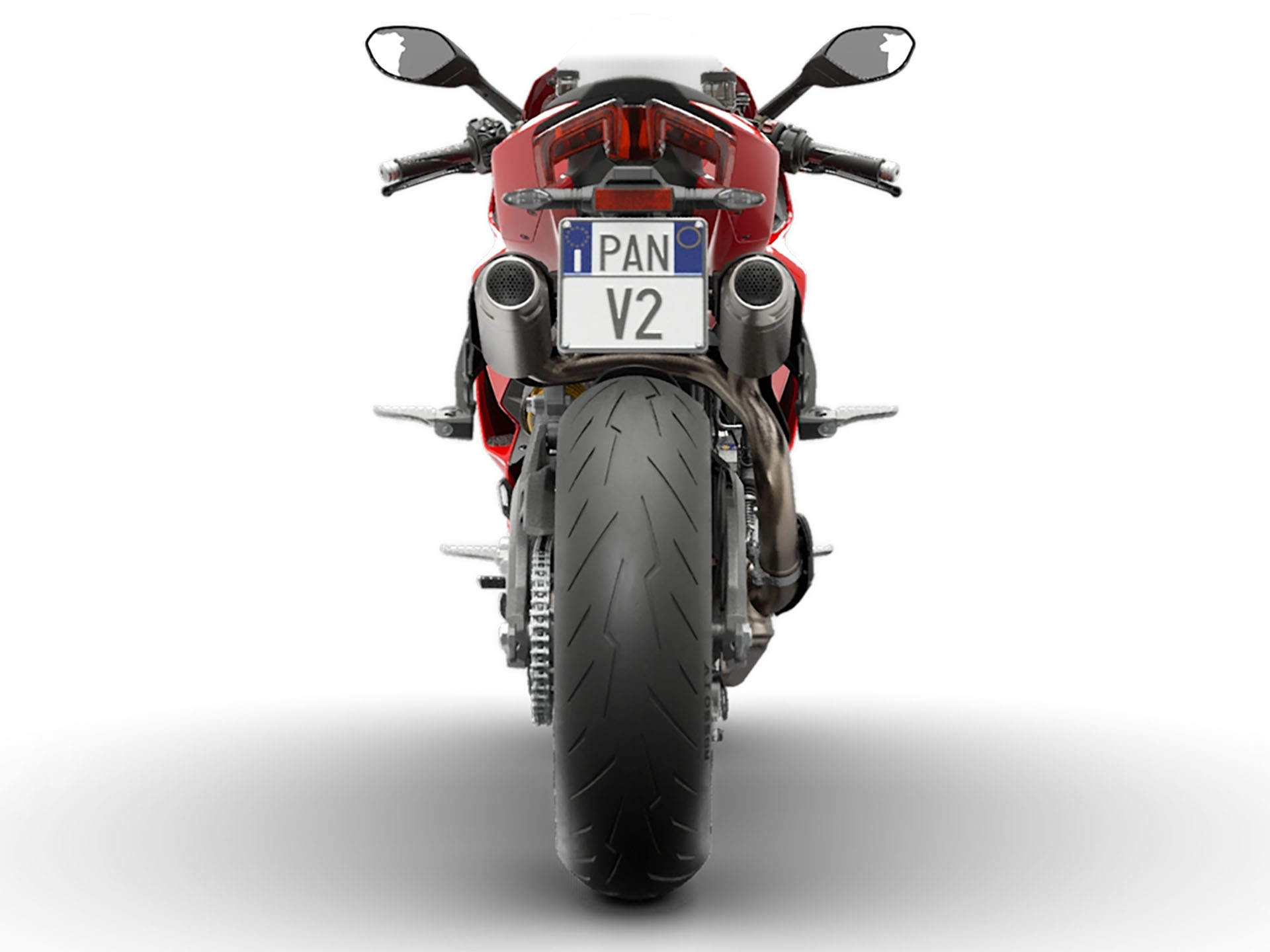

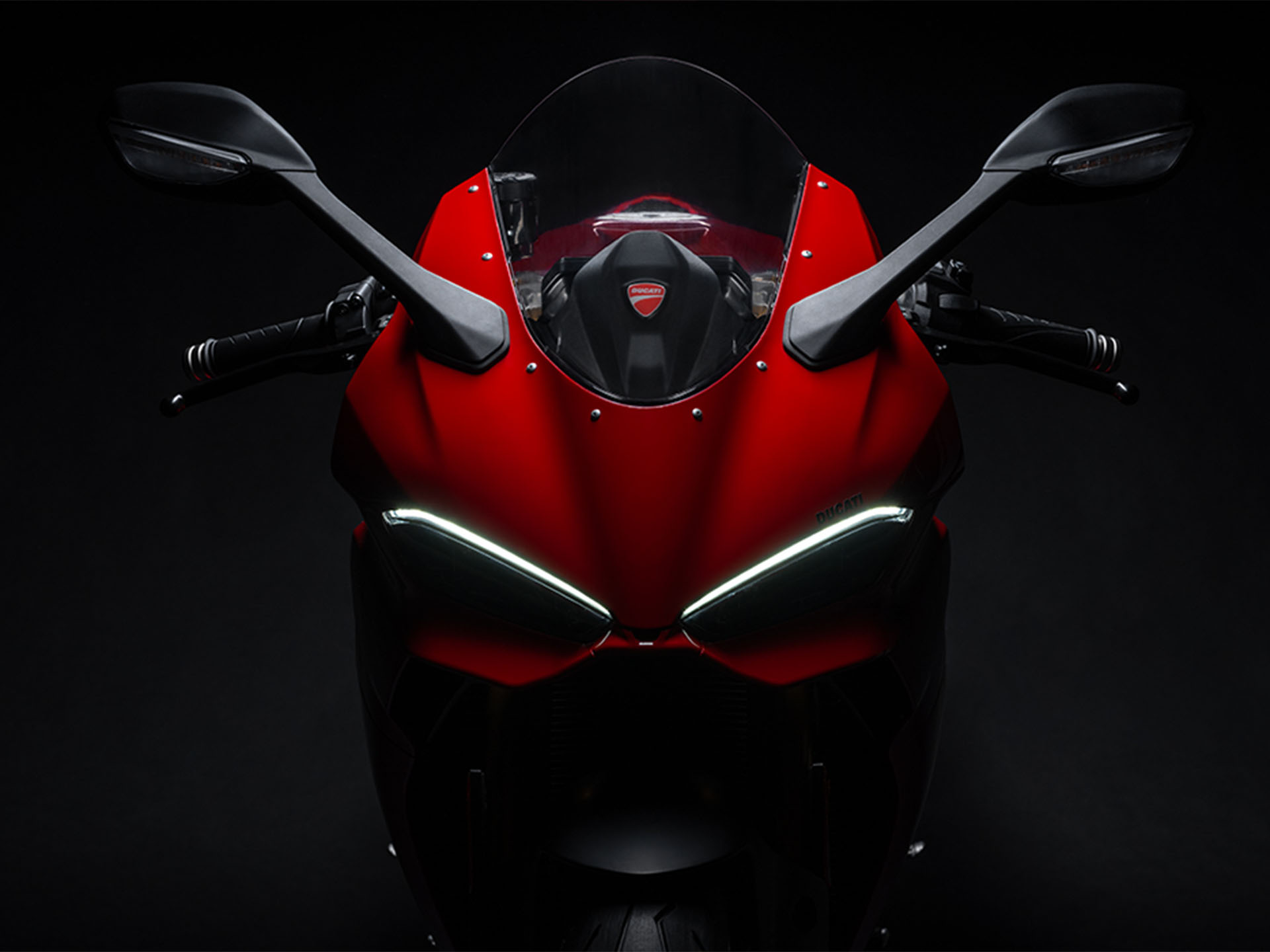

• LIGHTS AND INDICATORS: The front headlight assembly is extremely compact thanks to the adoption of two small LED low beam / high beam modules. The Daytime Running Light and the upper rim of the dual headlight assembly create a 'browed' look, the modern hallmark of Ducati sports bikes. At the rear, the full LED taillight features a two-part design as per Ducati sports tradition. The dual red arch of the side light makes the Panigale V2 both unmistakable and assertive. Front and rear LED indicators complete the lighting system.
• ABS BOSCH CORNERING EVO: The ABS system on the Panigale V2 features the cornering function (which keeps the ABS working even with the bike leaned over) and has the same intervention logic and control as on the V4.

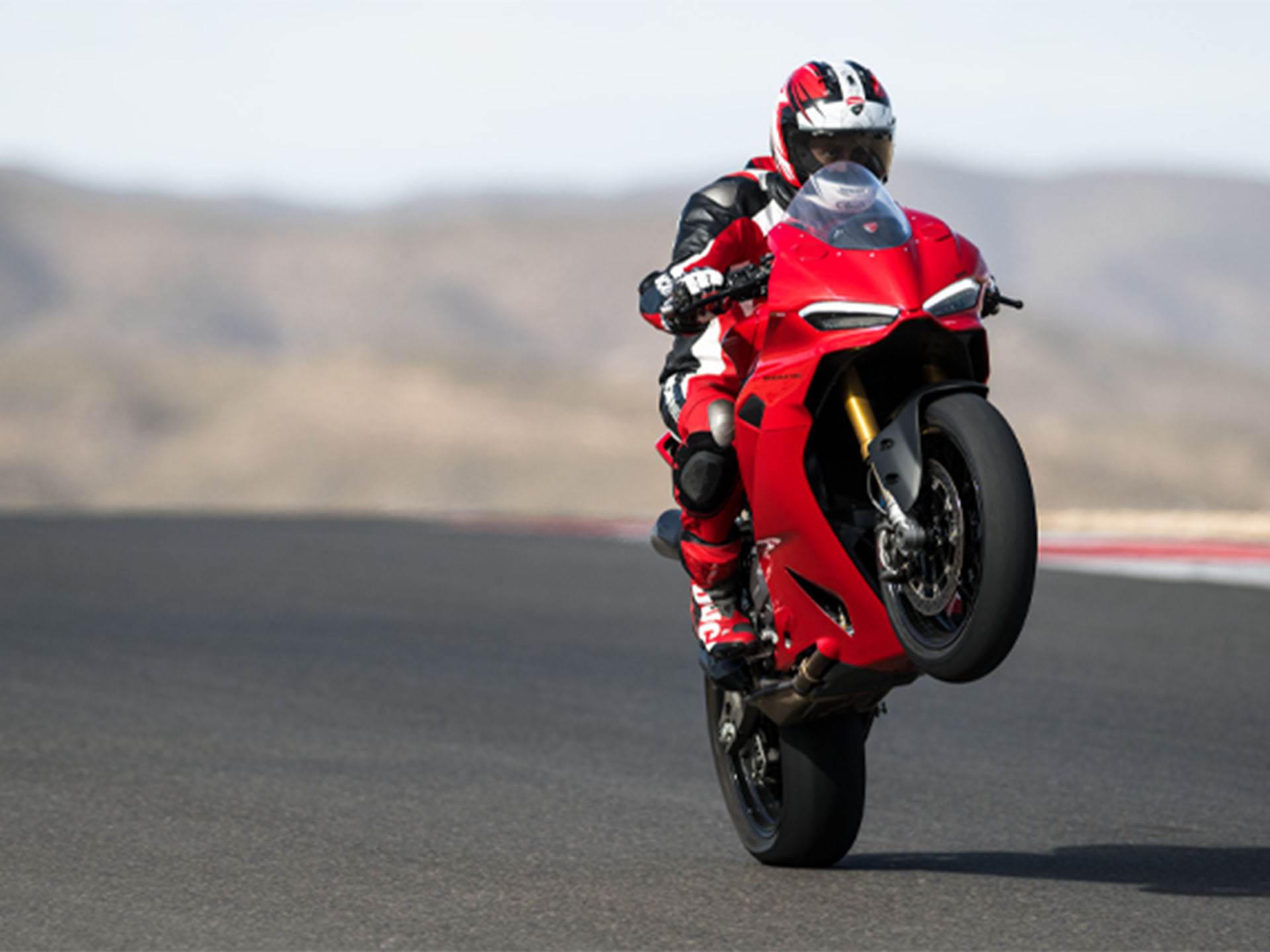

• DUCATI WHEELIE CONTROL (DWC) EVO: The Panigale V2 is also equipped with the latest version of Ducati Wheelie Control (DWC) EVO. Using the data feed from the 6D IMU, this system keeps wheelies in check while maximizing acceleration easily and safely.
• DUCATI TRACTION CONTROL (DTC) EVO 2: The new Ducati Traction Control (DTC) EVO 2 strategy is an offshoot of the Ducati Desmosedici GP18.
• ENGINE BRAKE CONTROL (EBC) EVO: The EBC (Engine Brake Control) system was developed to help riders optimize bike stability under extreme turn-in conditions; it does so by balancing the forces applied to the rear tire under severe engine-braking conditions.
• RIDING MODE: Riding Modes provide users with three different pre-set riding styles so that Panigale V2 performance can be adapted to rider, track/route and weather conditions.
• DUCATI DATA ANALYSER + GPS (DDA+ GPS): The Ducati Data Analyzer + GPS (DDA + GPS), allows assessment of bike and rider performance by showing traces for specific data items.
• DUCATI LAP TIMER GPS (DLT GPS): The DLT GPS feature automatically records and saves lap times and displays them directly on the dashboard each time the bike crosses the finish line, the coordinates of which are set by pressing the flasher button.
• DUCATI MULTIMEDIA SYSTEM (DMS): The Panigale V2 can be used with the Ducati Multimedia System (DMS). This lets riders take incoming calls, select and listen to music or receive text messages via Bluetooth.

Engine

• INJECTORS AND DUCTS: The Panigale V2 mounts two injectors per cylinder, one above and one below the throttle body, larger, and re-angled. Despite having the same flow rate, the intake ducts lose less pressure than their predecessors, improving intake efficiency.
• COMPACT SILENCER: The silencer boasts an internal layout that is better able to abate spikes in noise, back pressure remaining equal.
• 90° V CYLINDERS: The Panigale V2 engine acts as a stressed member of the frame. Set 90° apart, the cylinders are banked rearwards around the crankshaft axis, resulting in a 21° angle between front cylinder and horizontal plane. The two cylinder heads and aluminum top covers feature a ribbed design to reduce mechanical noise. The crankcases are vacuum diecast using Vacural® technology to optimize weight saving and ensure consistent wall thickness and increased strength. The crankcase cover, clutch cover and sump are all in die-cast aluminum.
• TRANSMISSION: Transmission involves a six-speed gearbox with the Ducati Quick Shift up/down EVO system and a wet clutch. The latter comes complete with an anti-patter and progressive self-servo mechanism.

Features

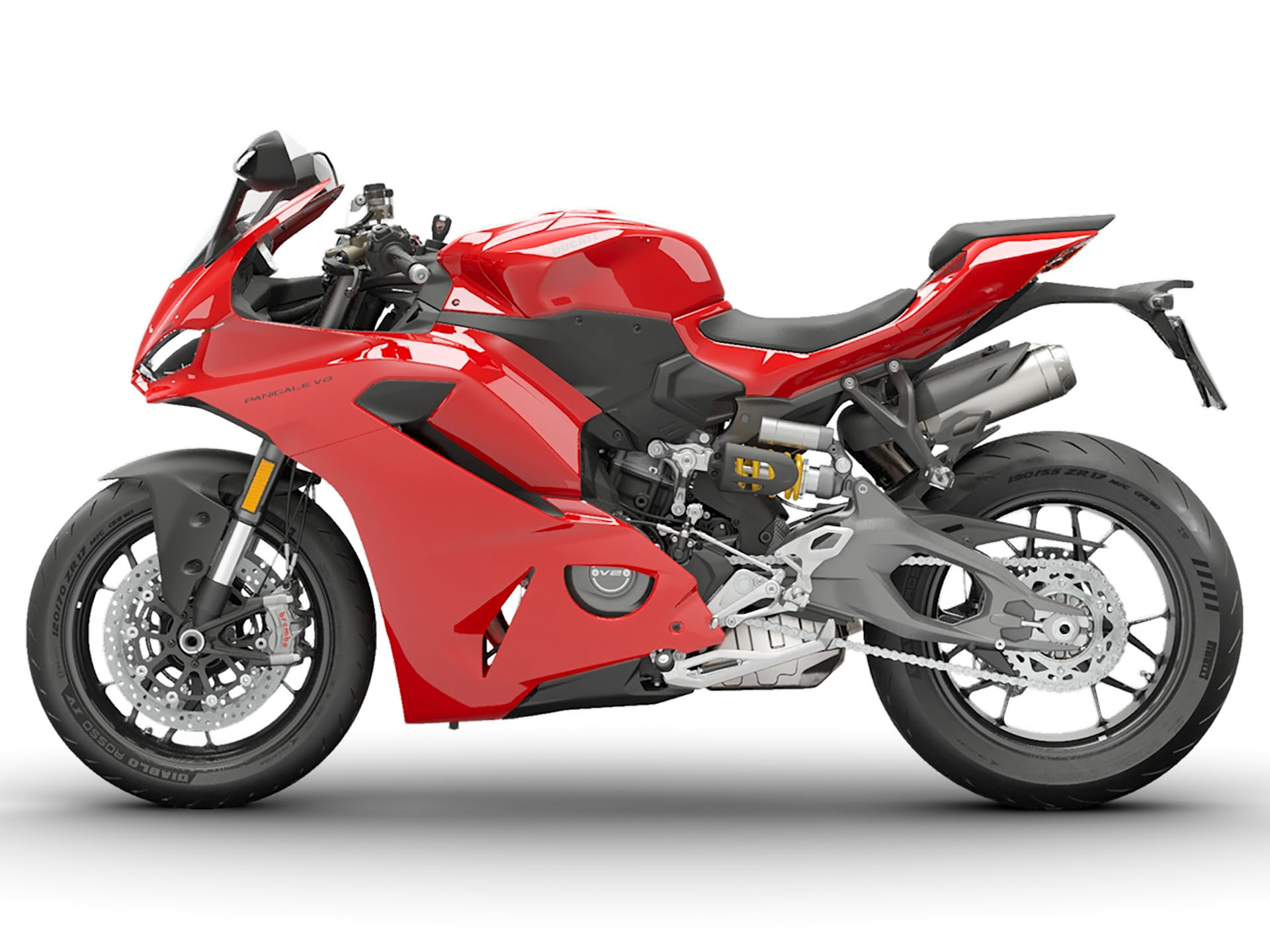

• SPORTS ESSENCE: A simple design with clear-cut lines that convey power, without compromising classic Ducati superbike flair. The Panigale V2 features the single-sided aluminum swingarm, the hallmark of every high-end sports Ducati. The extensive fairing envelopes the refined monocoque frame, highlighting a more compact Superquadro twin-cylinder engine, smaller in comparison to the Desmosedici Stradale.
• "DOUBLE LAYER" FAIRING: A main fairing extends upwards and merges into the tank with its muscular shoulders, while a secondary layer serves as an air vent. This 'double layer' solution revives the clean lines typical of Ducati sports bikes, famed for their full-fairing look. The fairing underside is visually connected to the under-engine silencer, which terminates in a single lateral pipe.

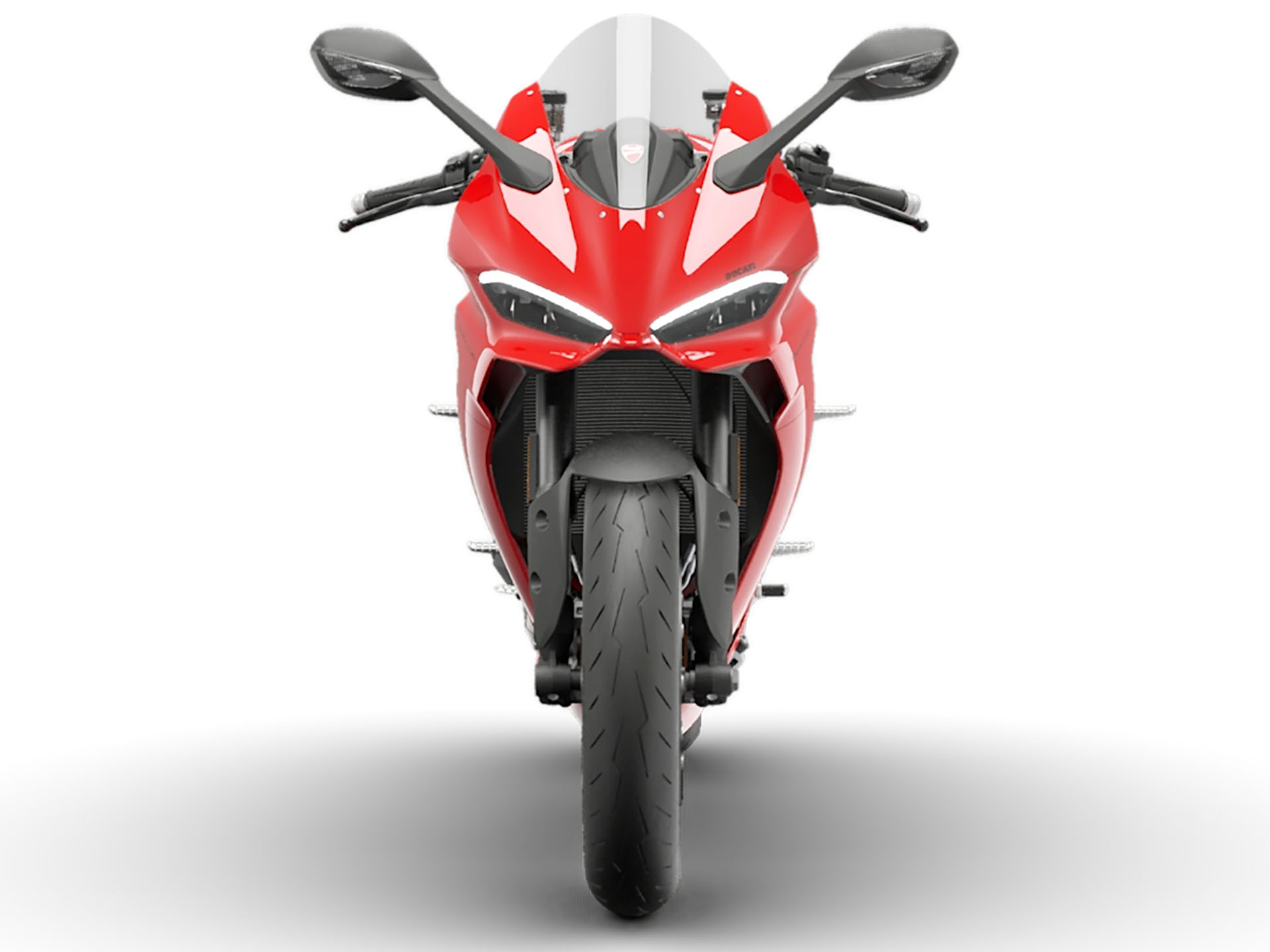

• PANIGALE LOOK: Dominating the front end are the two large air intakes, the upper parts of which incorporate the full LED headlight. The front vents merge with the air intake layout via ducts that reduce pressure loss, thus boosting intake efficiency. The headlight is reduced in size with the specific intention of giving the intakes themselves - especially with the bike at standstill - a more menacing air, like two enormous mouths.

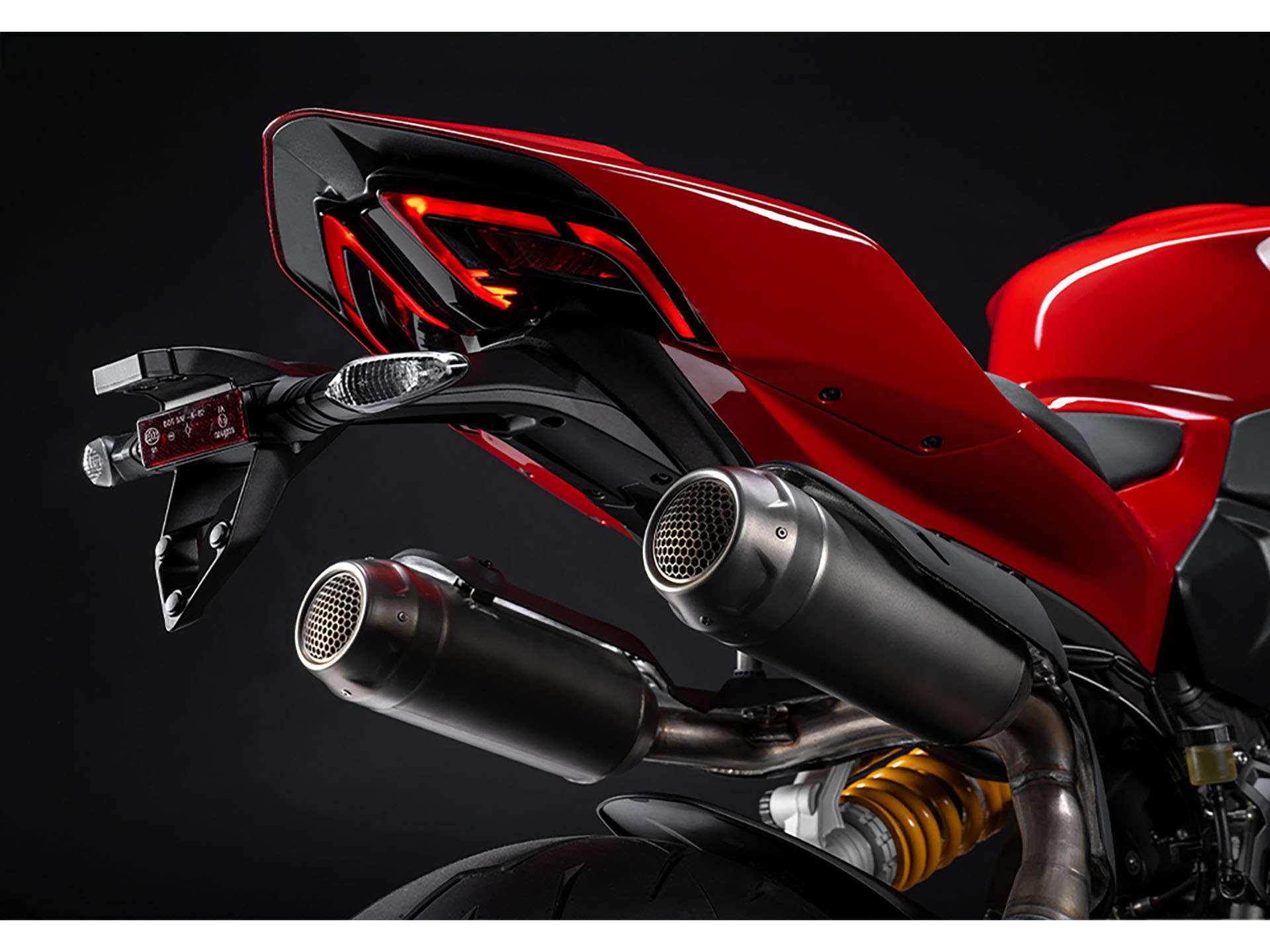

• PERFECT DUCATI STYLE: The tail is built on a steel trellis subframe lined with plastic covers that runs from the vertical cylinder to the tailpiece, the winged design of which is inspired by a car spoiler. The tailpiece incorporates the full LED taillight, also wing-shaped. Although it has a one-piece assembly, the light has two distinct parts in line with Ducati sports bike tradition.
• COMPACT, MUSCULAR LINES FOR HIGH-LEVEL PERFORMANCE: Complete with sophisticated electronics, designed to offer the rider complete riding freedom in total safety.
• BLACK ON BLACK LIVERY: The new color scheme highlights the audacious character of the Panigale V2. The predominance of dark matte grey is broken up with glossy black elements, for a refined and attractive overall look. The livery is finished with the Panigale V2 logo and subtle red details on the tank, fairings and wheels. The Black on Black livery also brings a new-look seat featuring updated graphics and materials.
• MONOCOQUE FRAME: The extensive fairing envelopes the refined monocoque frame and highlights the forms of the Superquadro twin. The ‘double layer’ fairing - which sees a main fairing extending upwards and embrace the tank and a secondary layer serving as an air vent - showcases the clean lines typical of Ducati sports bikes, elegant and unique
• 955 CC SUPERQUADRO: The Superquadro is as enjoyable on the road as it is effective and responsive on track, delivering 155 hp at 10,750 rpm and torque of 104 Nm at 9000 rpm. Together with the commemorative Panigale V2 Bayliss, the Panigale V2 is the only twin in the Ducati Panigale range, which also includes the V4, V4 S, V4 SP 2 and V4 R versions
• PIRELLI DIABLO ROSSO IV CORSA AS STANDARD: The Panigale V2 mounts Pirelli Diablo Rosso IV Corsa tires as standard which, with their multi-compound technology, ensure maximum grip in all conditions, on both road and track.
